Repair Procedures: Installation

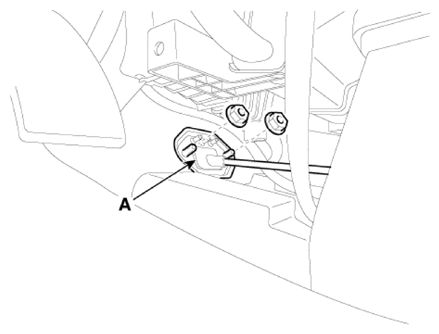

Insert "N range fixing pin"(A) of shift lever after checking the shift lever and manual control lever are on "N" range.

Courtesy of KIA MOTORS AMERICA, INC.

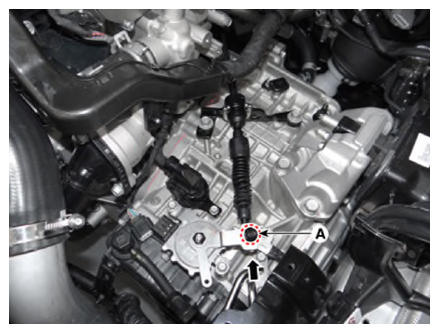

Install the shift cable retainer (A) by tightening nuts.
Tightening torque:

9.8 - 14.7 N m (1.0-1.5 kgf m, 7.2 - 10.8 lb ft)

Courtesy of KIA MOTORS AMERICA, INC.

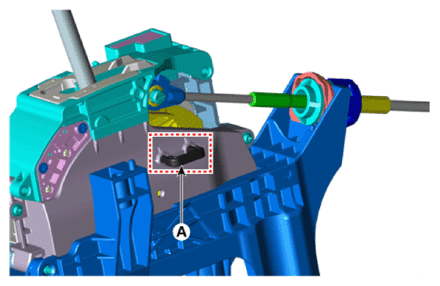

Insert the snap pin (A) after installing the shift cable.

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

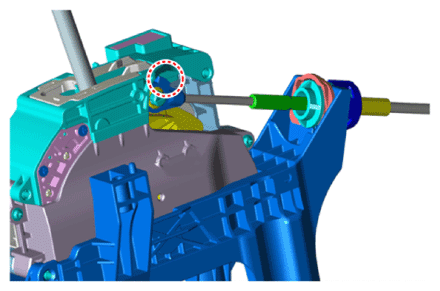

Install the shift cable after checking the direction of projection to prevent incorrect assembly.

Courtesy of KIA MOTORS AMERICA, INC.

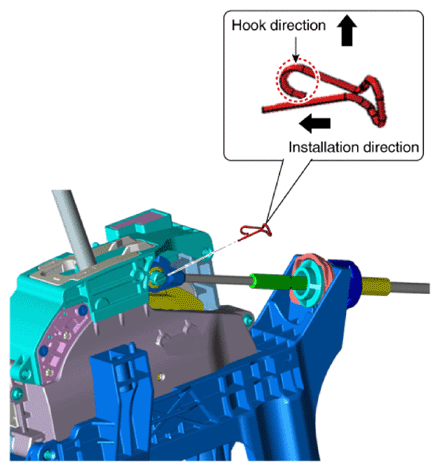

Mind the installation direction of snap pin and install the snap pin with the hook facing upward.

Courtesy of KIA MOTORS AMERICA, INC.

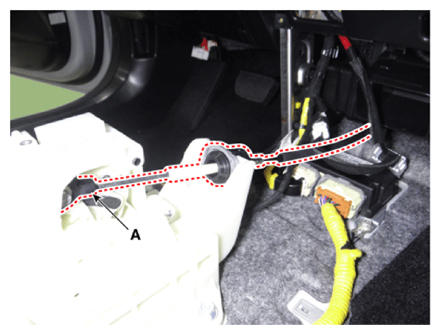

Install the shift cable (A) to the bracket and tighten the nut (B) lightly.

Courtesy of KIA MOTORS AMERICA, INC.

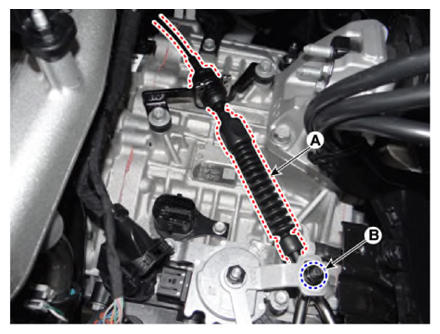

Tighten the nut (A) to the specified torque after removing free play by pushing the shift cable in the direction of the arrow.

Tightening torque:

9.8 - 14.7 N m (1.0-1.5 kgf m, 7.2 - 10.8 lb ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: The existing shift cable clip must be replaced with new one (do not reuse).

Courtesy of KIA MOTORS AMERICA, INC.
