Components And Components Location: Components

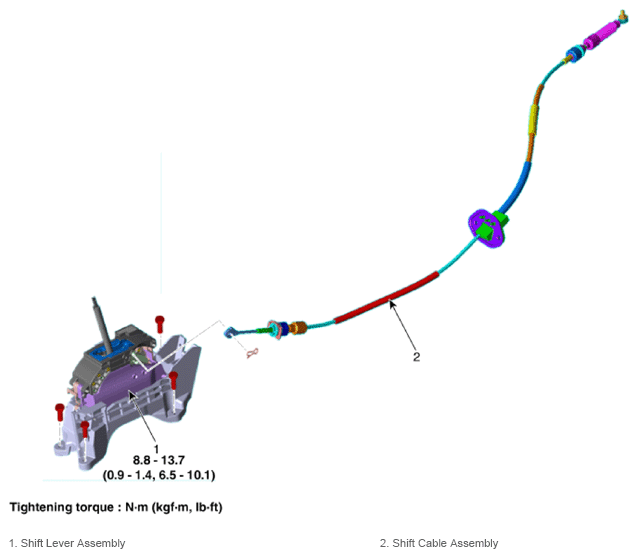

Fig 1: Shift Lever Components Location With Torque Specification
G13834277Courtesy of KIA MOTORS AMERICA, INC.
