Repair Procedures: Installation

  1. Install in the reverse order of removal.
    NOTE:

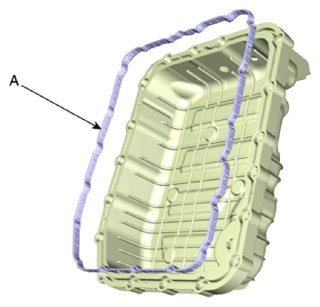

    • The existing valve body cover gasket (A) must be replaced with a new one (do not reuse).
      G13834262Courtesy of KIA MOTORS AMERICA, INC.
    • Refill the automatic transaxle with fluid.

      (Refer to " Replacement  ")

    • Confirm that there is no fluid leakage on connections after repairing.
