Repair Procedures: Removal

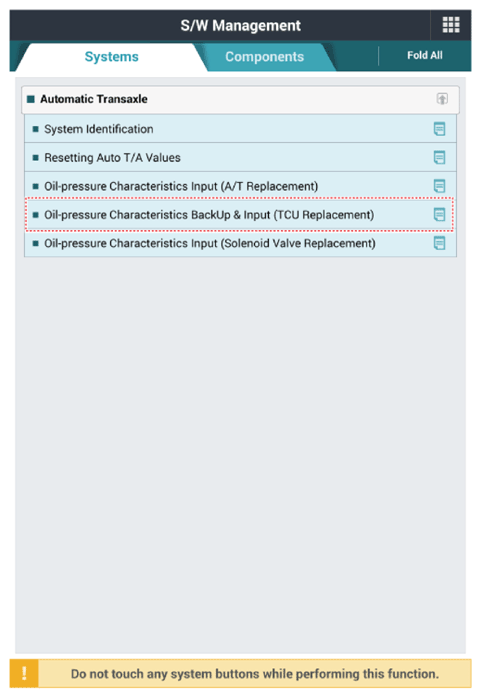

Perform the oil pressure characteristics backup procedure using the KDS when replacing with a new TCM.

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the negative (-) battery terminal.
Remove the under cover.
(Refer to "Removal And Installation ")

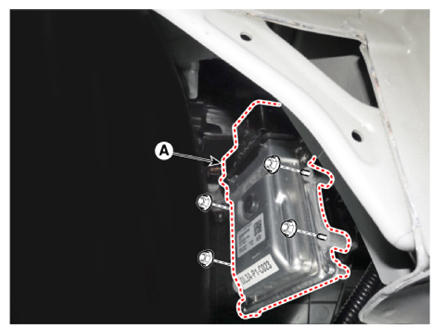

Remove the TCM (A) by removing the nut.
Tightening torque:

9.8 - 11.8 N m (1.0 - 1.2 kgf m, 7.2 - 8.7 lb ft)

Courtesy of KIA MOTORS AMERICA, INC.

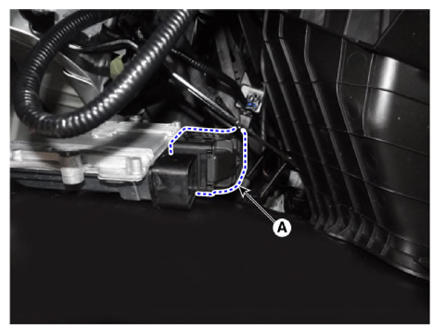

Disconnect the TCM connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
