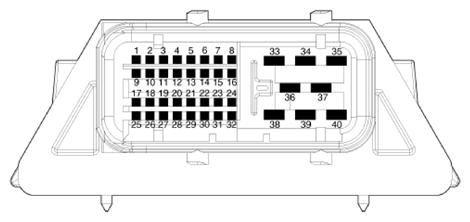

Connector And Terminal Function

Courtesy of KIA MOTORS AMERICA, INC.

Pin	Function	Pin	Function
1	Power	21	-
2	Ground	22	-
3	CCP-CAN High	23	-
4	CCP-CAN Low	24	-
5	P-CAN High	25	-
6	P-CAN Low	26	-
7	Position sensor ground	27	Position sensor signal 1
8	-	28	Position sensor signal 2
9	-	29	P position output signal
10	Position sensor power 5 V	30	-
11	Electronic shift actuator sensor power 5 V	31	Back-up lamp signal
12	IG 1	32	-
13	Electronic shift actuator sensor signal 2	33	Electronic shift actuator motor U
14	Electronic shift actuator sensor signal 1	34	Electronic shift actuator motor V
15	Electronic shift actuator sensor ground	35	Electronic shift actuator motor W
16	-	36	Power
17	-	37	Electronic shift actuator power
18	-	38	Ground
19	-	39	-
20	-	40	-
