Component Location

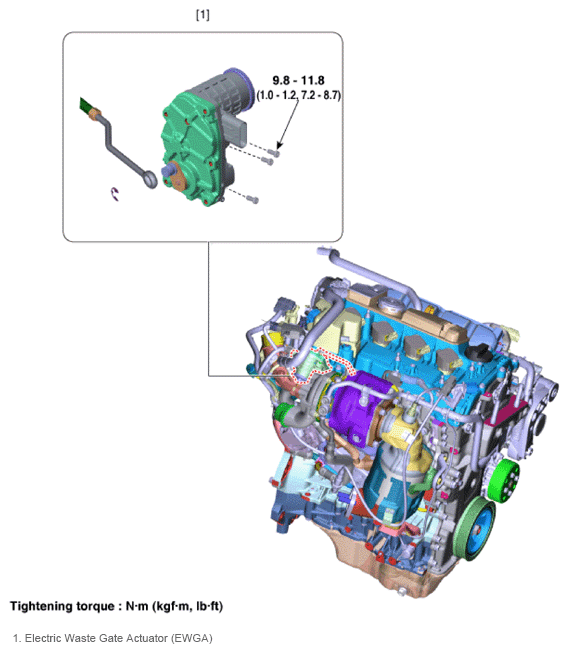

Fig 1: Electric Waste Gate Actuator Components Location With Torque Specification
G13833932Courtesy of KIA MOTORS AMERICA, INC.
