Repair Procedures: Removal

Disconnect the battery negative (-) terminal.
Remove the air cleaner assembly.
(Refer to " Removal And Installation ")
Remove the intercooler inlet pipe.
(Refer to " Removal And Installation ")

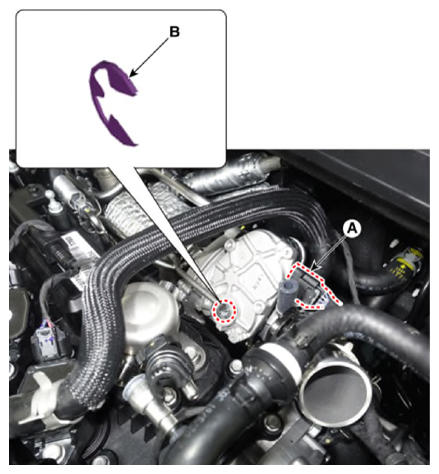

Disconnect the Electric Waste Gate Actuator (EWGA) connector (A) and remove the retaining ring (B)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Be careful not to lose the retaining ring when removing it.

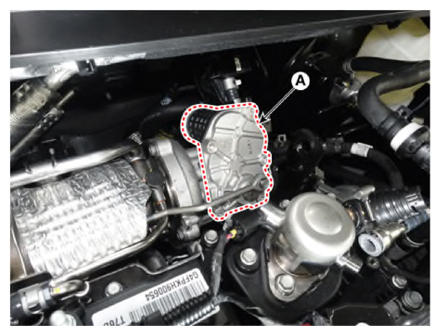

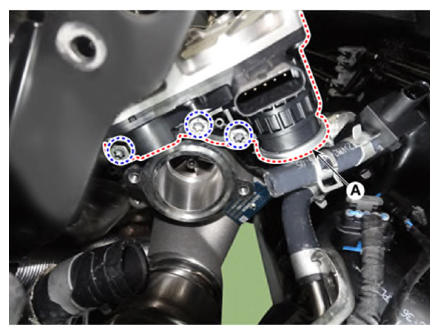

Remove the EWGA (A) by removing the bolts.
Tightening torque:

9.8 -11.8N.m (1.0-1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
