Rear Heated Oxygen Sensor

Disconnect the negative (-) battery terminal.

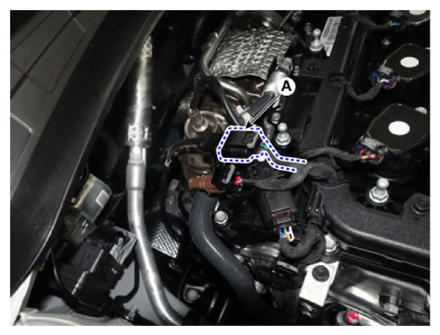

Disconnect the heated oxygen sensor connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

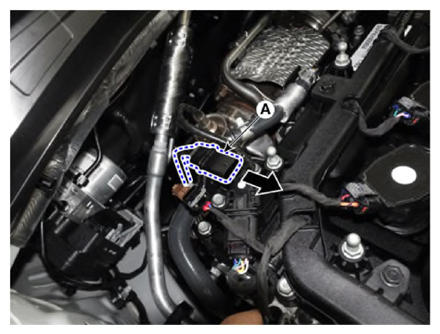

Remove the connector (A) from the bracket by pulling it in the direction of arrow.

Courtesy of KIA MOTORS AMERICA, INC.

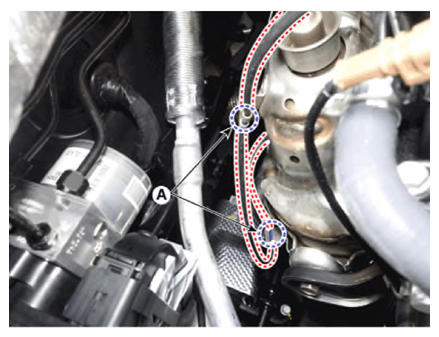

Separate the rear heated oxygen sensor wiring from the fixing clip (A).

Courtesy of KIA MOTORS AMERICA, INC.

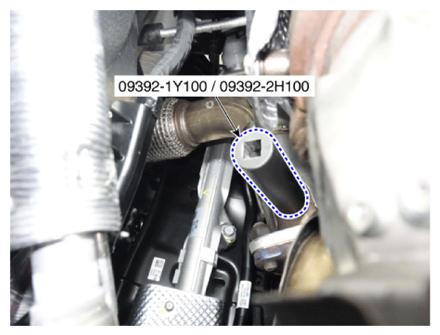

Remove the rear heated oxygen sensor by using the SST (09392 - 1Y100 or 09392-2H100).
Tightening torque:

39.2 - 49.1 N.m (4.0 - 5.0 kgf.m, 28.9 - 36.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
