Components Location

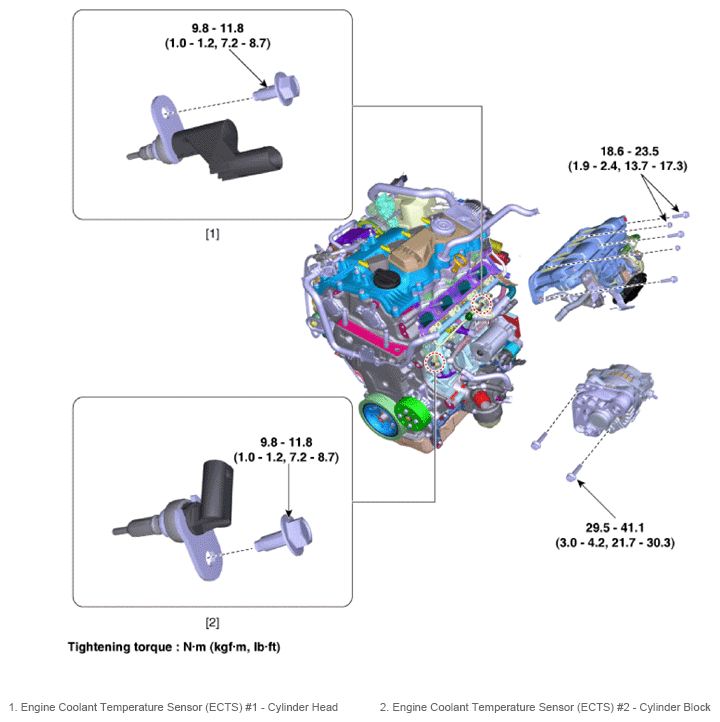

Fig 1: Engine Coolant Temperature Sensor Components Location With Torque Specification
G13833946Courtesy of KIA MOTORS AMERICA, INC.
