Repair Procedures: Removal

Disconnect the negative (-) battery terminal.

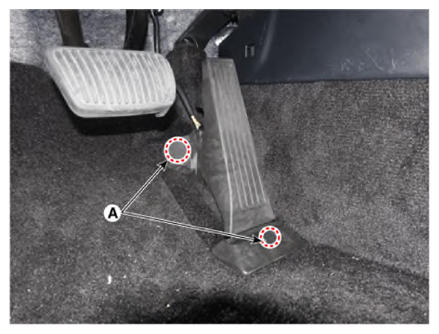

Remove the mounting caps (A).

Courtesy of KIA MOTORS AMERICA, INC.

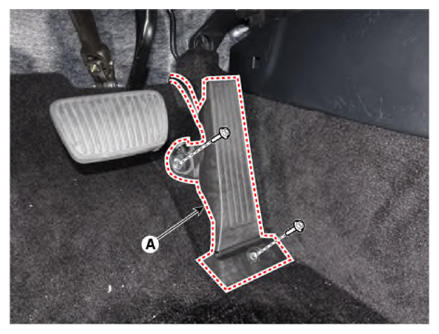

Remove the accelerator pedal module (A) after removing the mounting bolts.
Tightening torque:

8.9 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft))

Courtesy of KIA MOTORS AMERICA, INC.

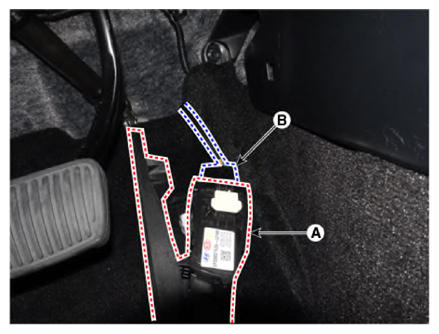

Disconnect the accelerator pedal connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
