Repair Procedures: Removal
- Disconnect the battery negative (-) terminal.
- Remove the engine room under cover.
(Refer to " Removal And Installation ")

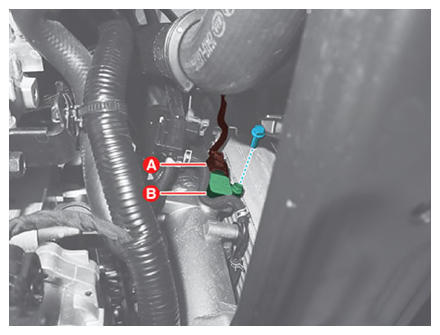

- After disconnecting the Boost Pressure Sensor (BPS) connector (A), remove the BPS (B) by removing the mounting bolts.
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
