Components Location: Exhaust

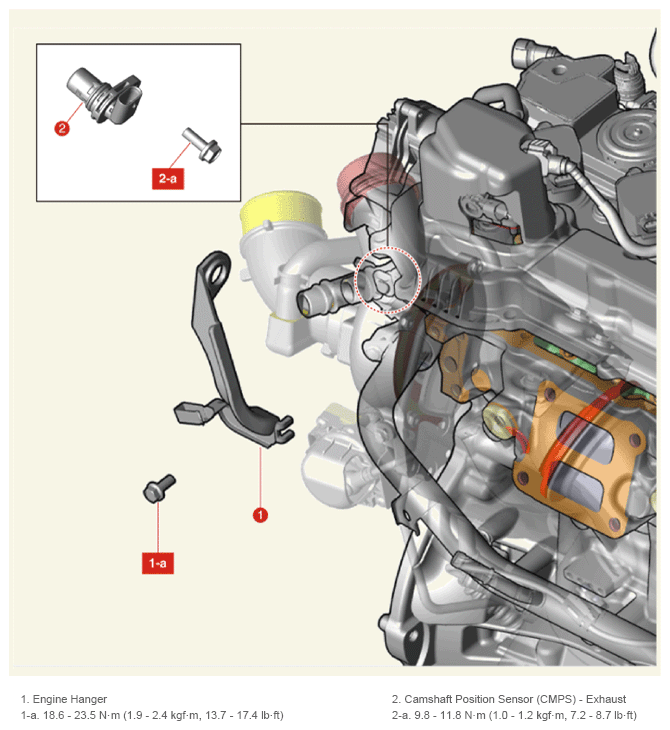

Fig 1: Camshaft Position Sensor - Exhaust Components Location With Torque Specification
G13837424Courtesy of KIA MOTORS AMERICA, INC.
