Components Location: Intake

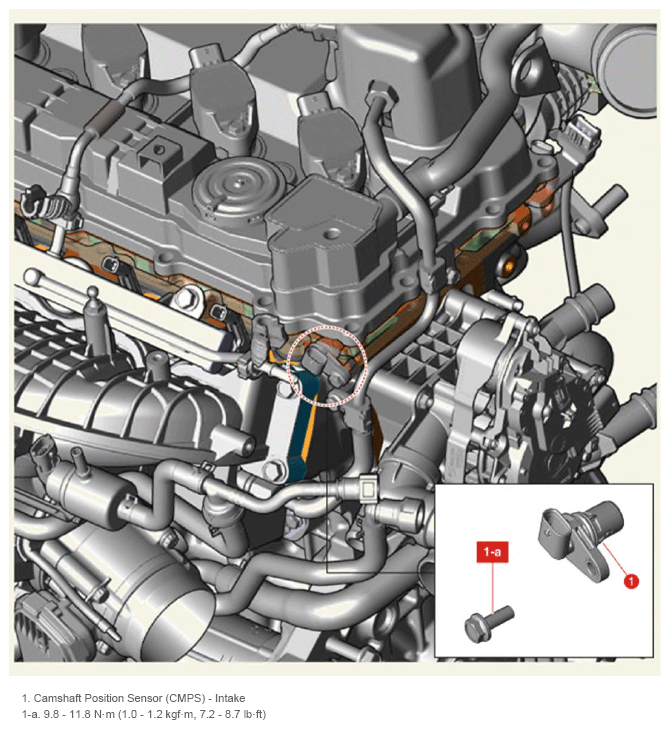

Fig 1: Camshaft Position Sensor - Intake Components Location With Torque Specification
G13837423Courtesy of KIA MOTORS AMERICA, INC.
