Repair Procedures: Removal: Intake

  1. Disconnect the battery negative (-) terminal.
  2. Remove the engine cover.

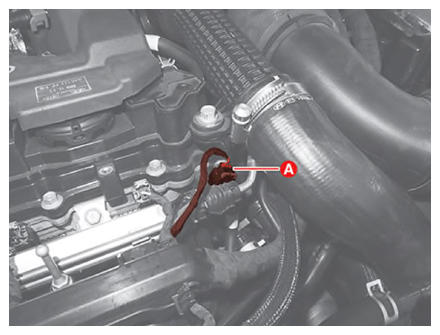

  3. Disconnect the Camshaft Position Sensor (CMPS) connector (A).
    G13837425Courtesy of KIA MOTORS AMERICA, INC.

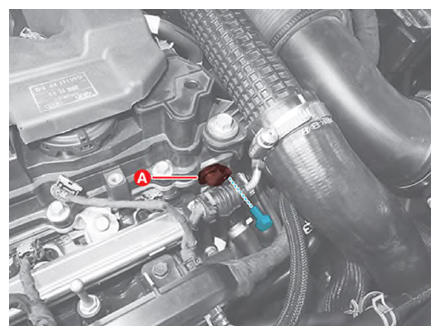

  4. Remove the CMPS (A) after removing the mounting bolt.

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G13837426Courtesy of KIA MOTORS AMERICA, INC.
