Repair Procedures: Installation

NOTE:
  • Install the CMPS with the specified torque.
  • If CKPS is dropped, it may cause internal damage. Do not use it.

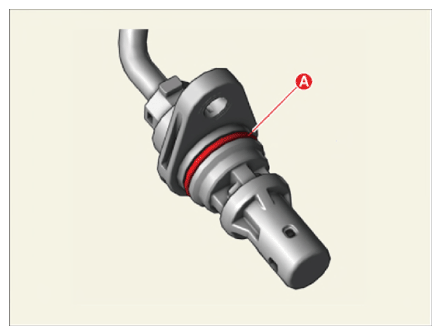

  • Install the CKPS after applying the engine oil to the O-ring (A).
    G13837439Courtesy of KIA MOTORS AMERICA, INC.
  • Be careful to damage the sensor, when it is installed.
  1. Install in the reverse order of removal.
