Repair Procedures: Removal

Disconnect the battery negative (-) terminal.

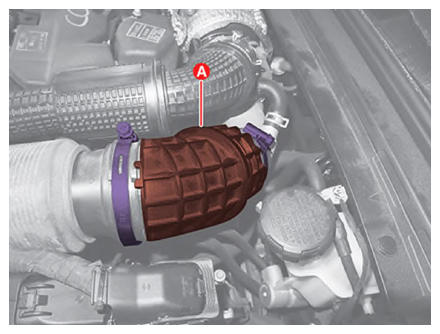

Remove the air intake hose (A) after loosening the clamp bolts.
Tightening torque:

2.9 - 4.9 N.m (0.3 - 0.5 kgf.m, 2.2 - 3.6 lb.ft, 26.0 - 43.4 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.

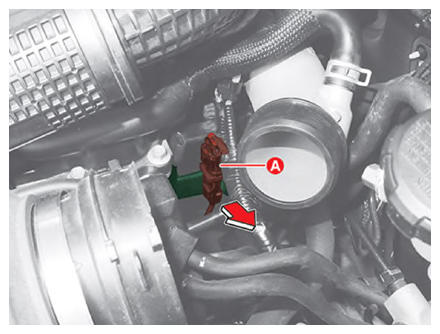

Separate Crankshaft Position Sensor (CKPS) connector (A) from the bracket.

Courtesy of KIA MOTORS AMERICA, INC.

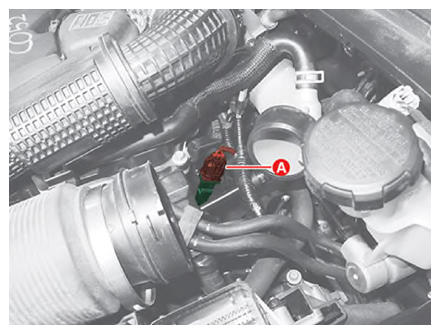

Disconnect the CKPS connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the engine room under cover.
(Refer to " Removal And Installation ")

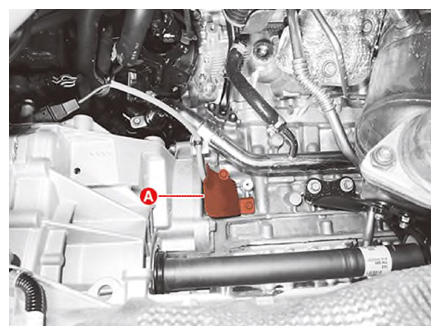

Remove the Crankshaft Position Sensor (CKPS) heat protector (A) after removing the mounting bolt.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

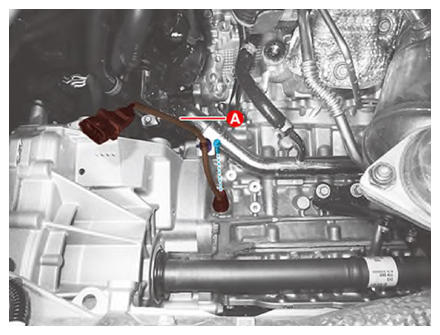

Remove the CKPS (A) by removing the bolt after removing the wiring fixing clip.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
