E-CVVT Cover

Remove the vacuum pump.
(Refer to " Removal ")
Remove the engine mounting support bracket.
(Refer to " Engine Mounting Bracket ")
Remove the engine support bracket (A) after removing the mounting bolts.
Information

Remove in order of 6→5→4→3→2→1

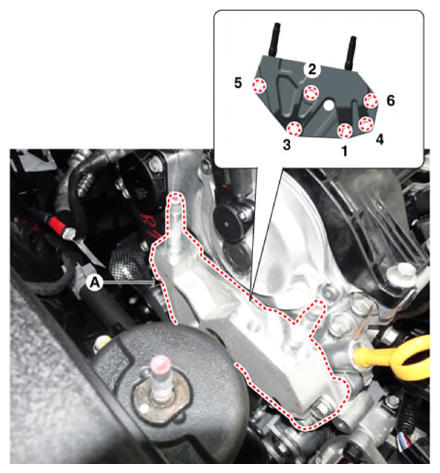

Fig 1: Engine Support Bracket Bolts Loosening Sequence
Courtesy of KIA MOTORS AMERICA, INC.

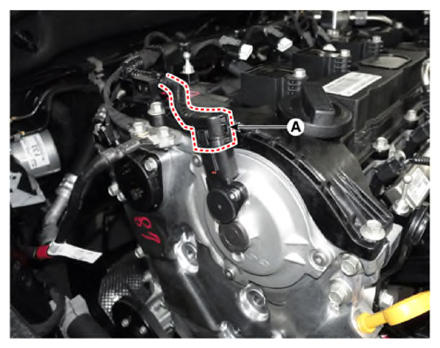

Disconnect the E-CVVT cover connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

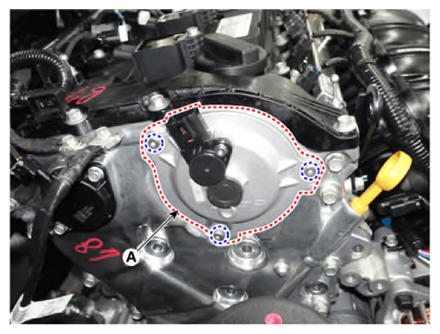

Remove the E-CVVT cover (A) after removing the mounting bolts.

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Be careful not to apply the force on the connector brush after removing the E-CVVT cover.
