Repair Procedures: Installation

NOTE:

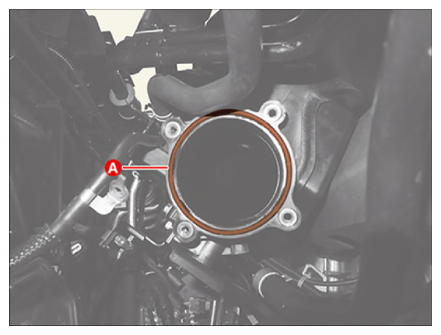

  • Check the seal ring (A) installation before installing the ETC module.
    G13837455Courtesy of KIA MOTORS AMERICA, INC.
  • Install the component with the specified torque.
  • If ETC module is dropped, it may cause internal damage. Do not use it.
  1. Install in the reverse order of removal.

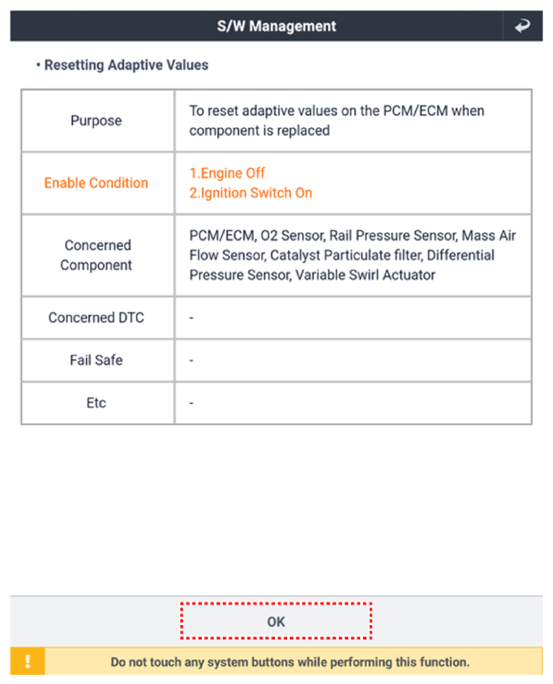

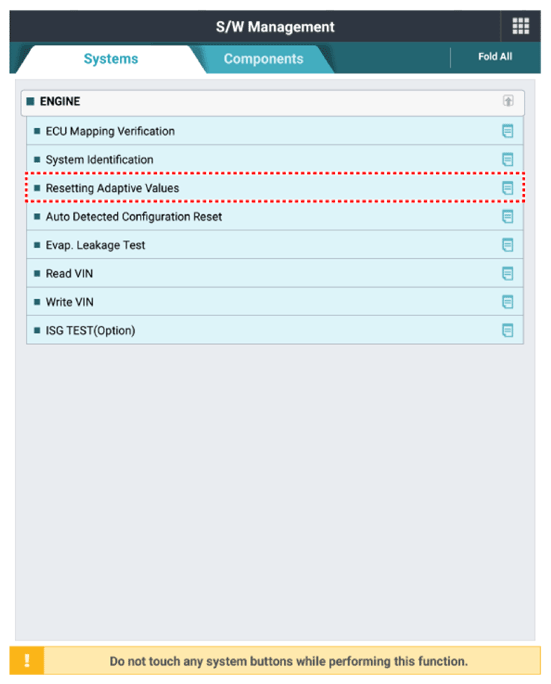

  2. Reset the ECM adaptive values after replacing the ETC.
    G13837456Courtesy of KIA MOTORS AMERICA, INC.
    G13837457Courtesy of KIA MOTORS AMERICA, INC.
  3. Perform the ETC learning procedure.

    (Refer to " ADJUSTMENT  ")
