Repair Procedures: Removal

Disconnect the battery negative (-) terminal.

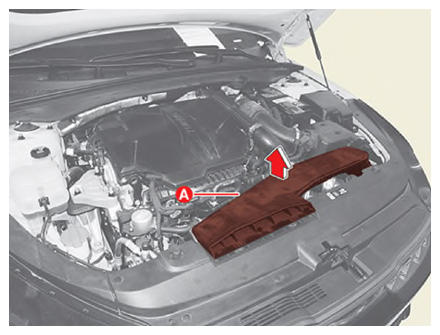

Remove the air duct (A).

Courtesy of KIA MOTORS AMERICA, INC.

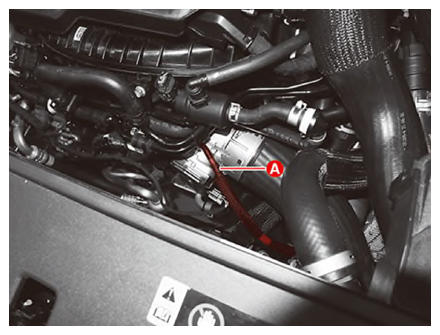

Separate the Electric Recirculation Control Valve (E-RCV) hose (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the under cover.
(Refer to " Removal And Installation ")

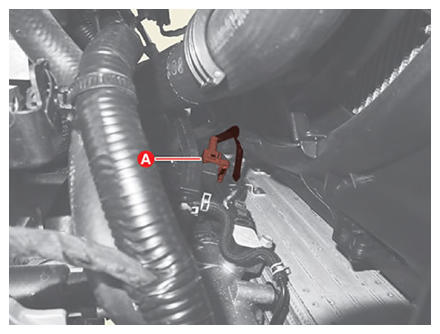

Disconnect the E-RCV connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

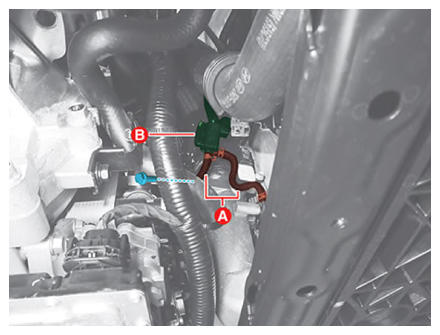

After separating the hoses (A), remove the E-RCV (B) after removing the mounting bolt.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

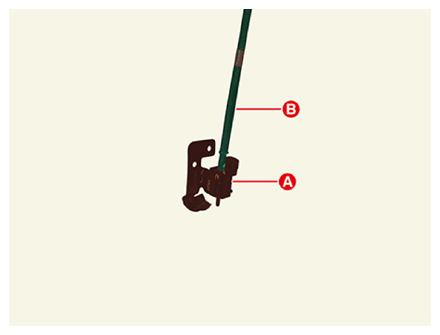

Separate the hose (B) from the E-RCV (A).

Courtesy of KIA MOTORS AMERICA, INC.
