Cylinder Block Side

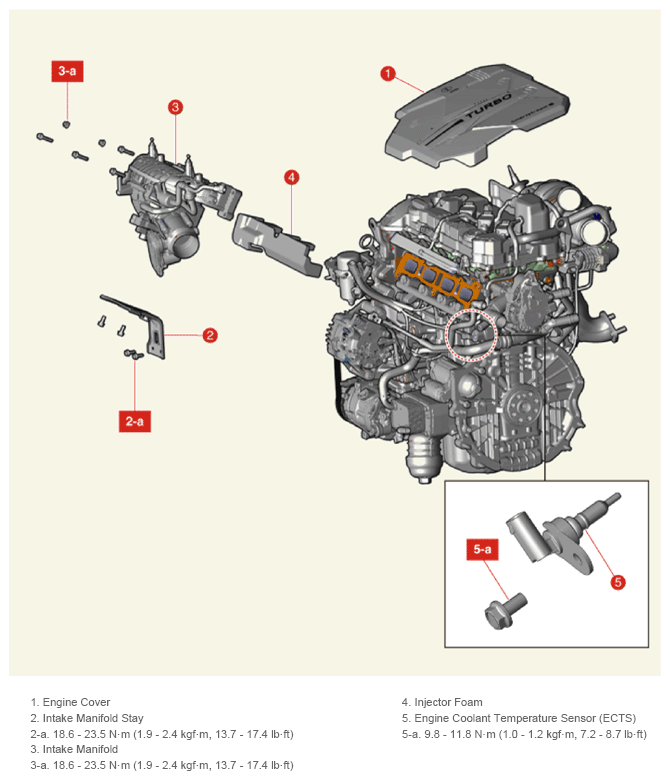

Fig 1: Engine Coolant Temperature Sensor Components Location With Torque Specification (Cylinder Block Side)
G13837463Courtesy of KIA MOTORS AMERICA, INC.
