Engine Coolant Temperature Sensor (ECTS) - Cylinder Block

Remove the intake manifold.
(Refer to " Removal And Installation ")

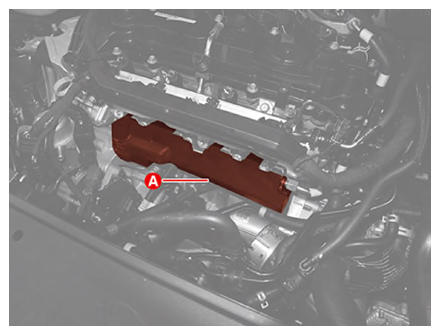

Remove the injector foam (A).

Courtesy of KIA MOTORS AMERICA, INC.

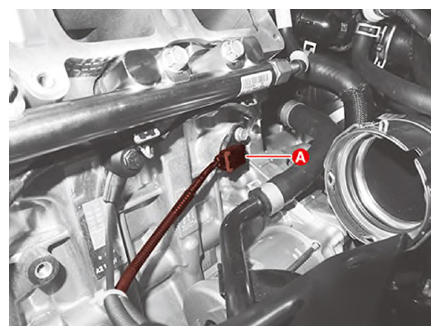

Disconnect the ECTS connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

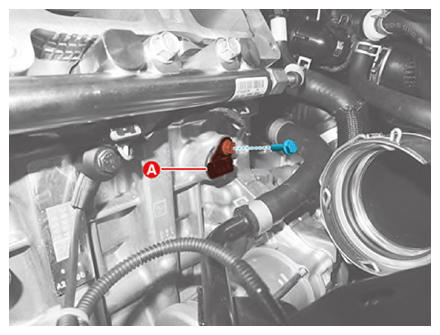

Remove the ECTS (A) after removing the mounting bolt.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
