Inspection Component

  1. Disconnect the battery negative (-) terminal.
  2. Disconnect the Heated Oxygen Sensor (HO2S) connector.
  3. Measure resistance between the HO2S terminals.

    Front:  Pin 4 to Pin 5

    Rear:  Pin 3 to Pin 4

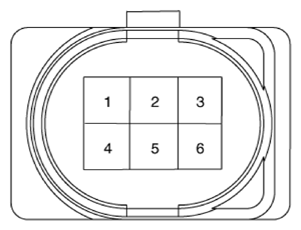

    Front

    G13837519Courtesy of KIA MOTORS AMERICA, INC.

    Rear

    G13837520Courtesy of KIA MOTORS AMERICA, INC.
  4. Compare the measured resistance with the specification.

    Specification:

    Front: 2.8 - 4.5 Ω

    Rear: 5.4 - 6.6 Ω
