Repair Procedures: Removal

Remove the intake manifold.
(Refer to " Removal And Installation ")

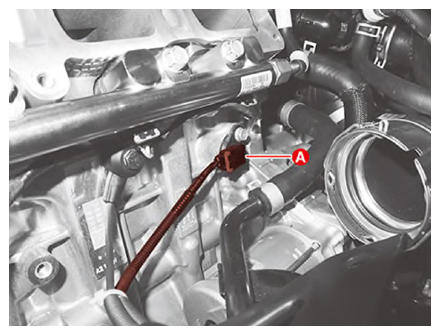

Disconnect the Engine Coolant Temperature Sensor (ECTS) connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

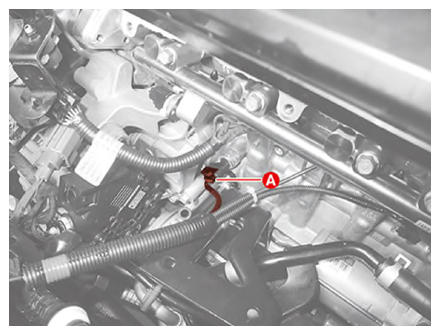

Disconnect the Oil Pressure and Oil Temperature Sensor (OPTS) connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

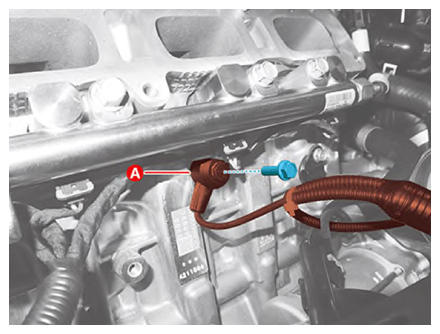

Remove the Knock Sensor (KS) after removing the mounting bolt (A).
Tightening torque:

18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb.ft)
