Repair Procedures: Removal

Disconnect the battery negative (-) terminal.

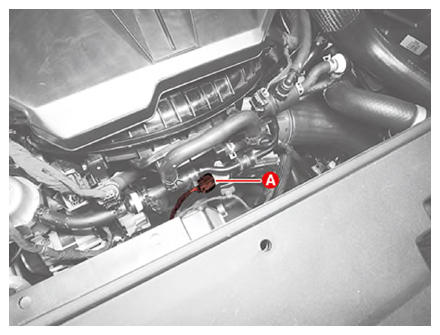

Disconnect the Manifold Absolute Pressure Sensor (MAPS) and Intake Air Temperature Sensor (IATS) connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

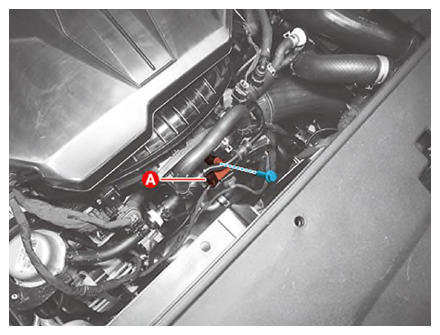

Remove the MAPS and IATS (A) after removing the mounting bolt.
Tightening torque:

8.9 - 10.7 N.m (0.9 - 1.1 kgf.m, 6.5 - 7.9 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
