Repair Procedures: Installation

  1. Install in the reverse order of removal.
    NOTE:

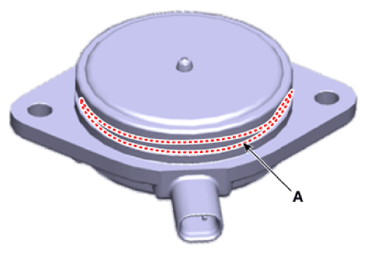

    • Install the VFS after applying the engine oil to the O-ring (A).
      G13837546Courtesy of KIA MOTORS AMERICA, INC.
    • Install the VFS with the specified torque.
    • If VFS is dropped, it may cause internal damage. Do not use it.
