Repair Procedures: Removal

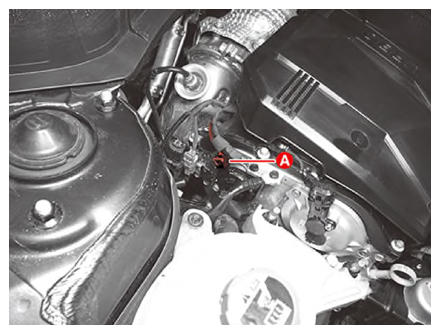

  1. Disconnect the Variable Force Solenoid (VFS) connector (A).
    G13837544Courtesy of KIA MOTORS AMERICA, INC.

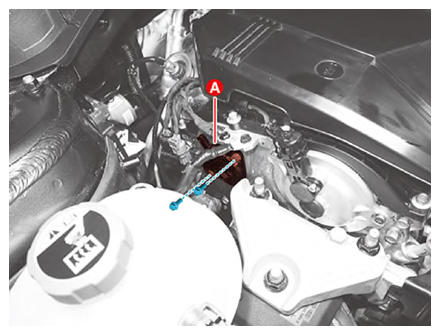

  2. Remove the VFS (A) after removing the mounting bolt.

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G13837545Courtesy of KIA MOTORS AMERICA, INC.
