Repair Procedures: Removal

Disconnect the battery negative (-) terminal.

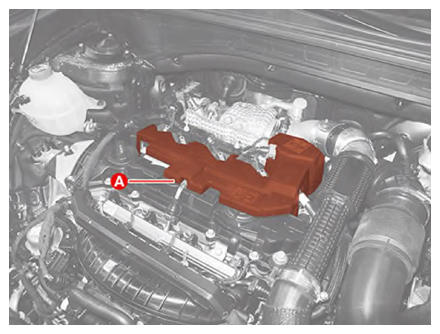

Remove the engine cover.
(Refer to " Removal And Installation ")

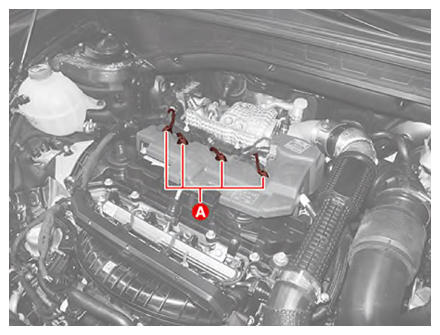

Disconnect the ignition coil connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the engine foam (A).

Courtesy of KIA MOTORS AMERICA, INC.

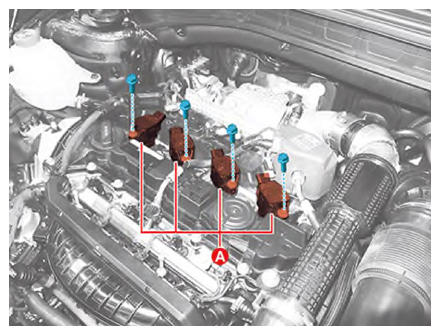

Remove the ignition coil (A) after removing the mounting bolt.
Tightening torque:

9.8 - 11.7 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

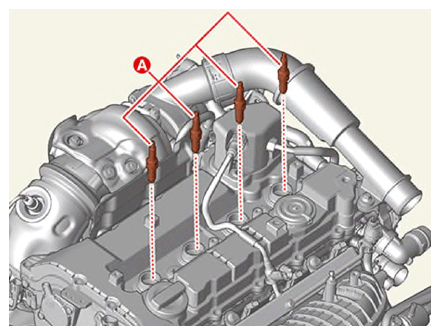

Remove the spark plug (A) by using the socket for spark plug.
Tightening torque:

14.7 - 24.5 N.m (1.5 - 2.5 kgf.m, 10.8 - 18.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: Be careful not to get contamination into the spark plug hole.
