FOB Status Check

  1. Connect the cable of KDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "FOB KEY STATUS INFO".

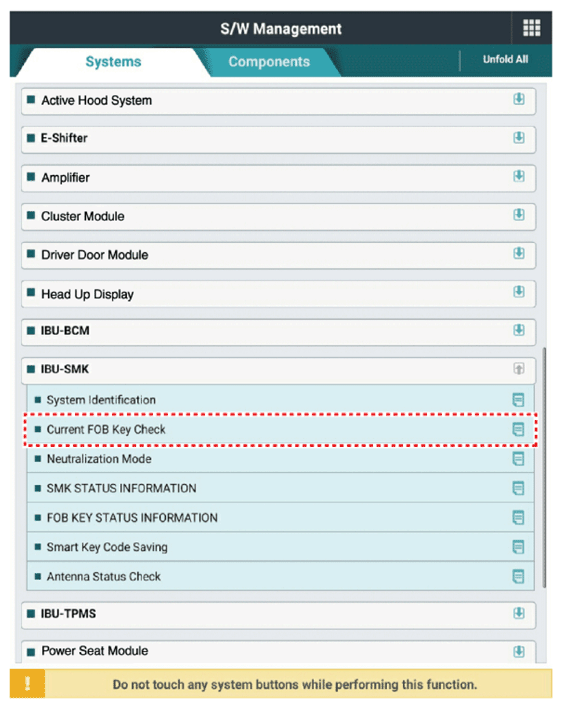

    G13836329Courtesy of KIA MOTORS AMERICA, INC.

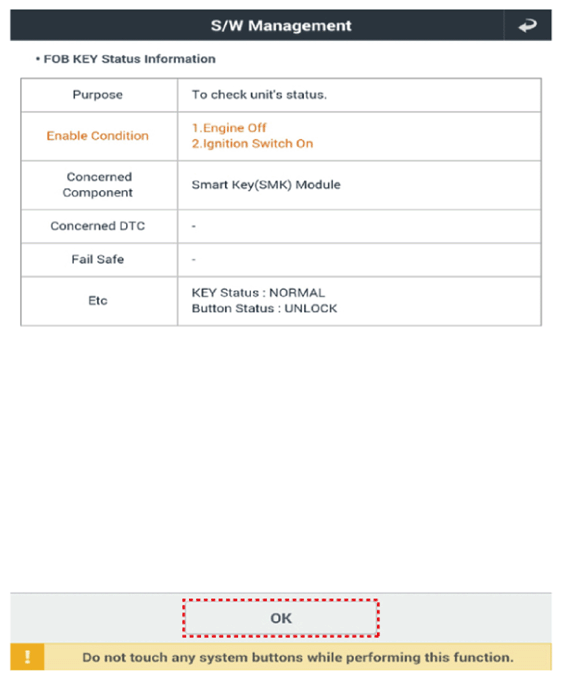

    G13836330Courtesy of KIA MOTORS AMERICA, INC.

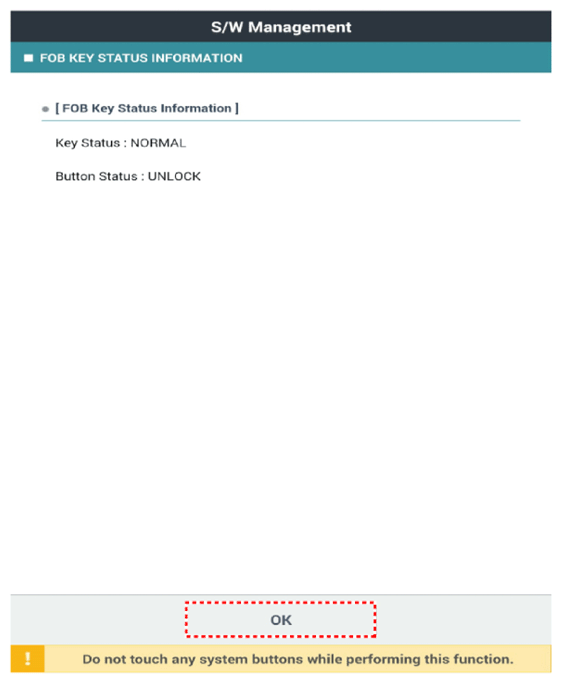

    G13836331Courtesy of KIA MOTORS AMERICA, INC.
