Repair Procedures: Installation

  1. Install in the reverse order of removal.
    NOTE:
    • When installing the CVVD actuator, insert dowel pin (B) carefully into the cam carrier hole after inserting the shaft (A).
      G13833893Courtesy of KIA MOTORS AMERICA, INC.

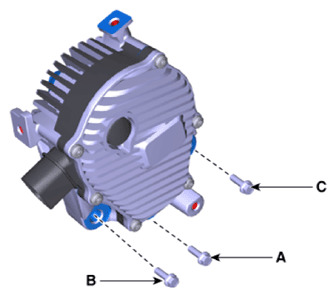

    • Tighten the bolts in the following order.
      1. Lightly tighten the bolts.
      2. Tighten the bolt (B) to the specified torque.
      3. Tighten the bolt (C) to the specified torque.
      4. Tighten the bolt (A) to the specified torque.
      G13833894Courtesy of KIA MOTORS AMERICA, INC.

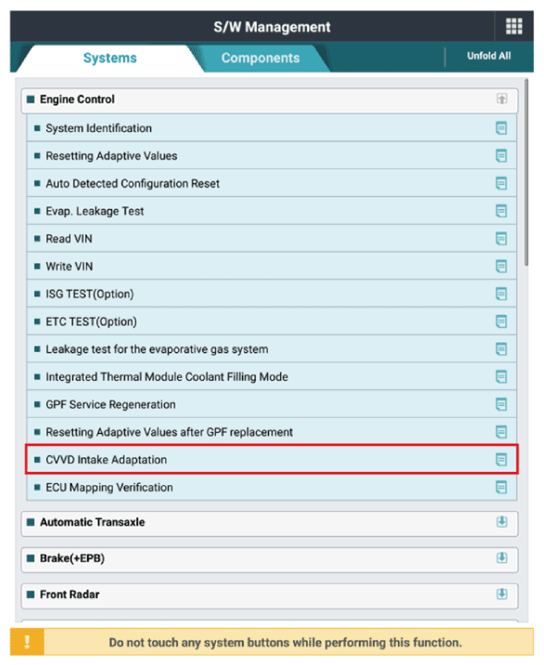

  2. Perform the "CVVD Intake Adaptation" after replacing the CVVD actuator.
    G13833895Courtesy of KIA MOTORS AMERICA, INC.
