Component Location

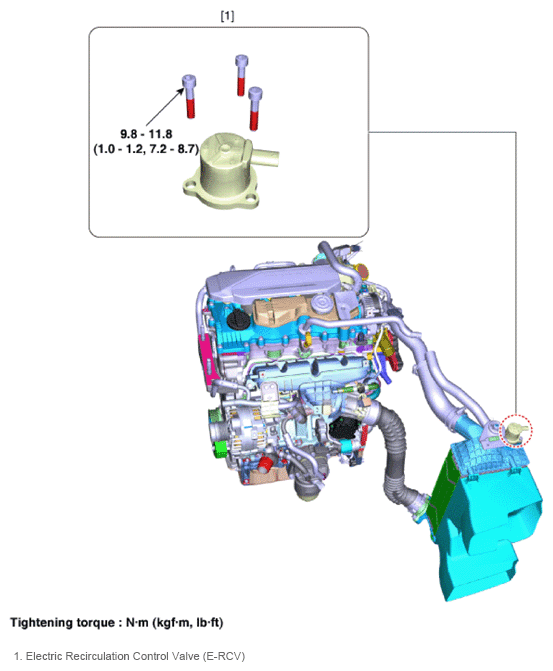

Fig 1: Electric Recirculation Control Valve Components Location With Torque Specification
G13833923Courtesy of KIA MOTORS AMERICA, INC.
