Electronic Throttle Control (ETC) System: Specifications: Specification
| Item | Specification | ||
|---|---|---|---|
| Motor | Type | DC Motor | |
| Operating Voltage (V) | 7.5-16 | ||
| Coil Resistance (Ω) | 1.29 -1.57 (Room temperature) | ||
| Sensor | Supply Voltage (V) | 5 | |

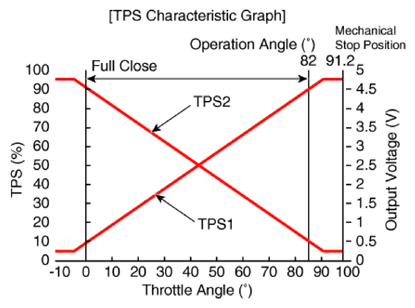

| Sensor Output Voltage (V) | Throttle angle (°) | TPS1 | TPS2 |
| 0 | 0.50 | 4.50 | |
| 10 | 0.96 | 4.05 | |
| 20 | 1.41 | 3.59 | |
| 30 | 1.87 | 3.14 | |
| 40 | 2.32 | 2.68 | |
| 50 | 2.78 | 2.23 | |
| 60 | 3.23 | 1.77 | |
| 70 | 3.69 | 1.32 | |
| 80 | 4.14 | 0.86 | |
| 90 | 4.6 | 0.41 | |
| 91.2 | 4.65 | 0.35 | |
| C.T (0°) | 0.50 | 4.50 | |
| W.O.T (82°) | 4.23 | 0.77 | |
