Repair Procedures: Adjustment

NOTE: Perform the following procedure when replacing ECM (New parts/Reused parts).

Perform the neutral mode using the KDS when replacing with a reused ECM.

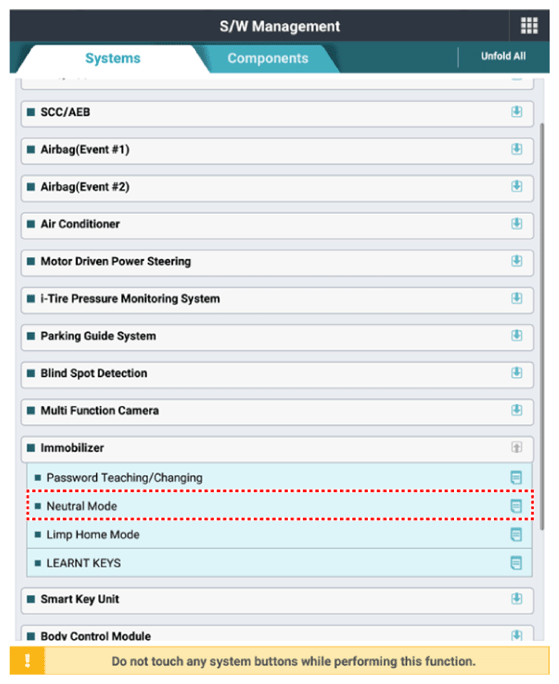

[Non-Smart Key]

Courtesy of KIA MOTORS AMERICA, INC.

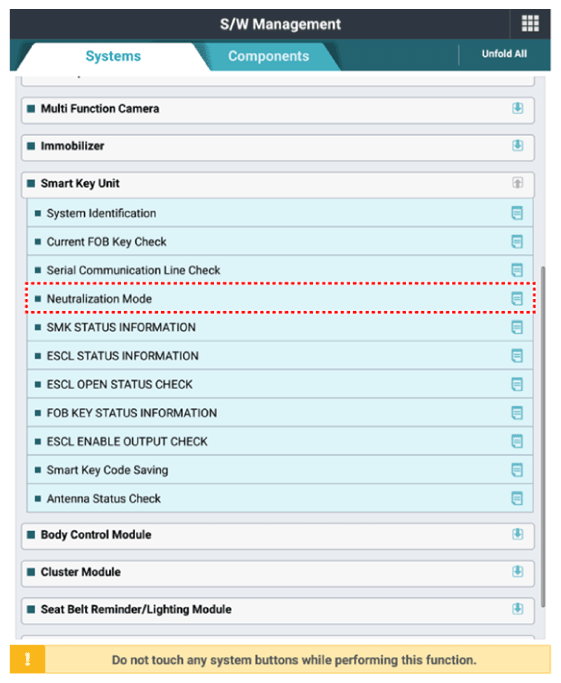

[Smart Key]

Courtesy of KIA MOTORS AMERICA, INC.

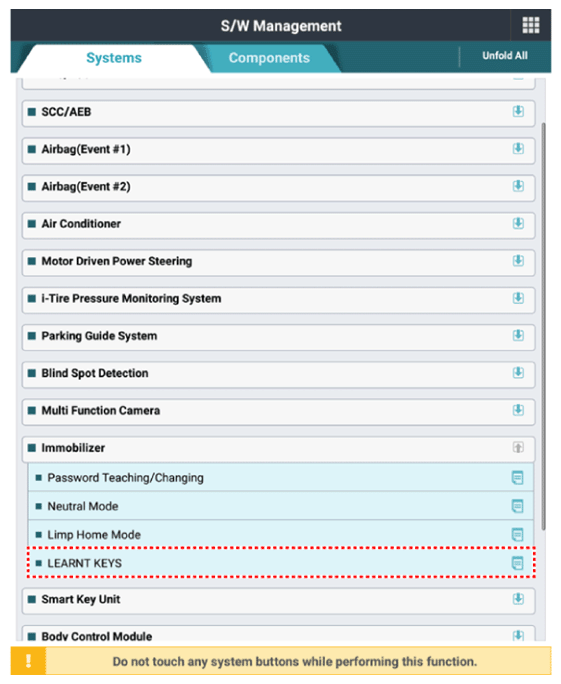

Perform the "Key Teaching" procedure by using the KDS.
[Non-Smart Key]

Courtesy of KIA MOTORS AMERICA, INC.

[Smart Key]

Turn IGN ON then OFF using the smart key or start button. Then the ECM learns information on the smart key automatically.

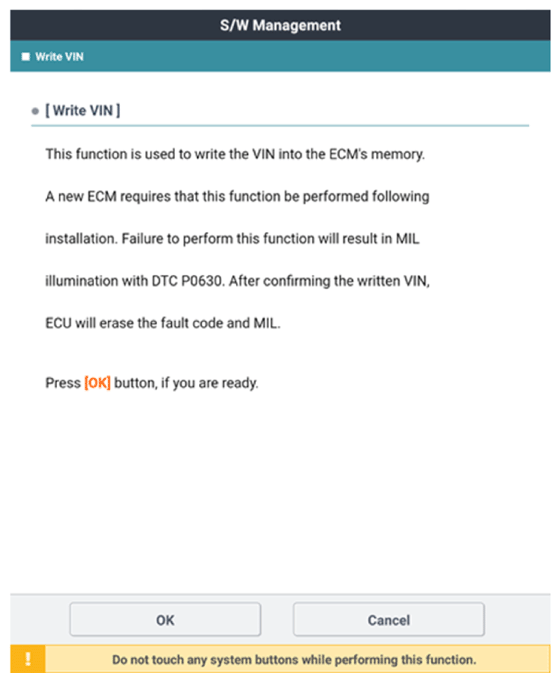

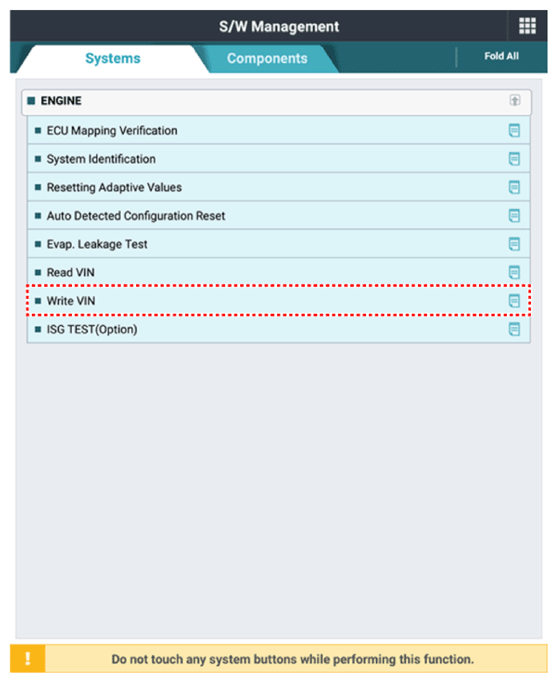

Perform the VIN writing procedure by using the KDS.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
Perform ETC module learning procedure
(Refer to " ADJUSTMENT ")
