Repair Procedures: Removal

Remove the air cleaner assembly.
(Refer to " Removal And Installation ")

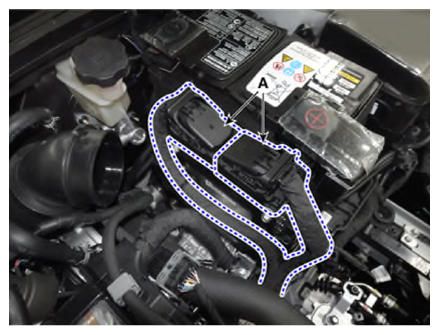

Disconnect the ECM connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

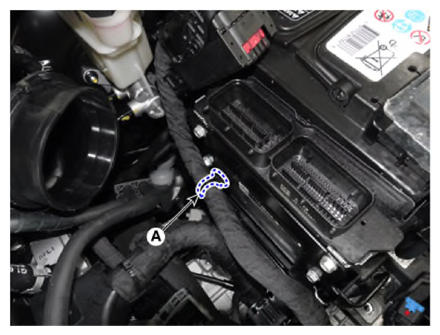

Remove the wiring clip (A).

Courtesy of KIA MOTORS AMERICA, INC.

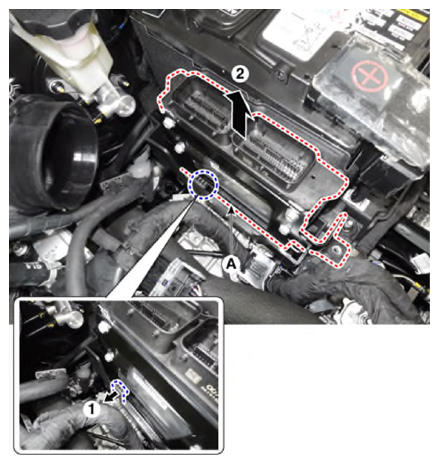

Remove the ECM (A) by pulling it in the direction of arrow after releasing the hooks.

Courtesy of KIA MOTORS AMERICA, INC.

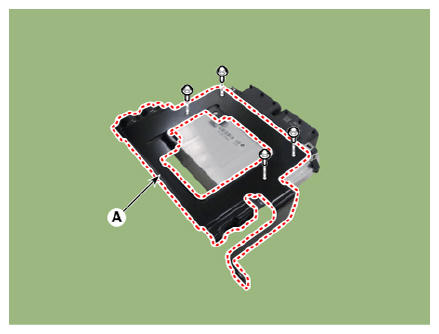

Remove the bracket (A) from the ECM after removing the mounting bolts.
Tightening torque:

9.8 -11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
