Connector And Terminal Function

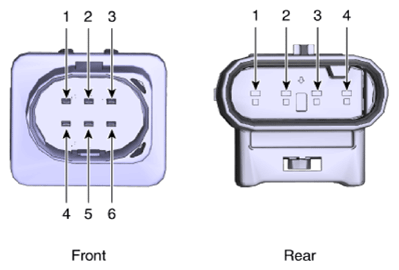

G13833958Courtesy of KIA MOTORS AMERICA, INC.
Pin Function
Front Rear
1 NERNST voltage Sensor signal +
2 Heater + Sensor ground -
3 Virtual ground Heater +
4 Resistance Heater -
5 Heater -
6 Pumping current
