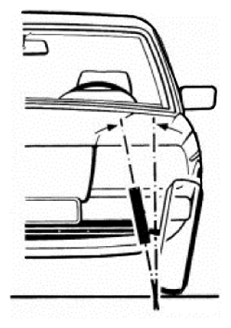

King-Pin Angle
King-pin: 14.5° ± 0.5°
NOTE:
- The worn loose or damaged parts of the front suspension assembly must be replaced prior to measuring front wheel alignment.
- Caster are pre-set to the specified value at the factory and don't need to be adjusted.
- If the caster are not within specifications, replace bent or damaged parts.
- The total difference between left and right wheel caster must be within the range of 0° ± 0.5°.
