Repair Procedures: Removal

Shift transmission to "N".
Remove the floor console assembly.
(Refer to " Replacement ")

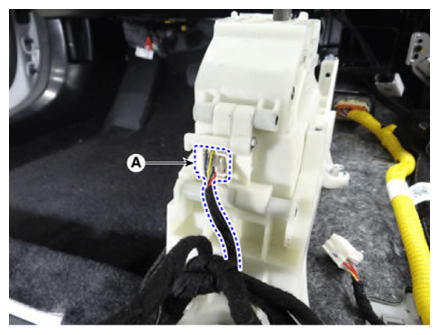

Disconnect the main connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

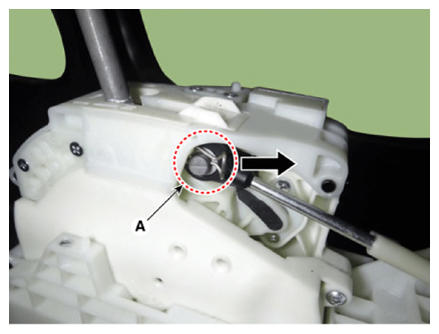

Remove the snap pin (A).

Courtesy of KIA MOTORS AMERICA, INC.

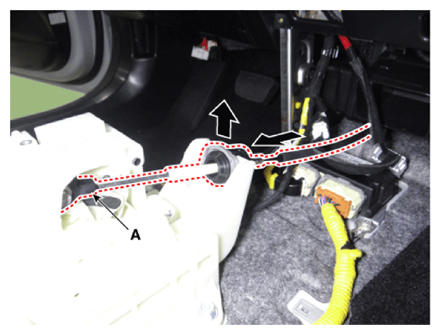

Remove the shift cable (A) from the shift lever.

Courtesy of KIA MOTORS AMERICA, INC.

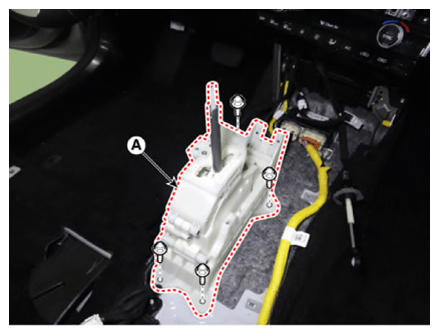

Remove the shift lever assembly (A).
Tightening torque:

8.8 - 13.7 N m (0.9 - 1.4 kgf m, 6.5 - 10.1 lb ft)
