Repair Procedures: Removal

Open the fuel filler door.
Disconnect the battery negative (-) terminal.

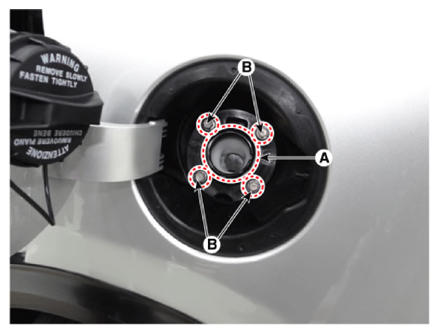

Separate the filler-neck assembly (A) after loosening mounting bolts (B).

Courtesy of KIA MOTORS AMERICA, INC.

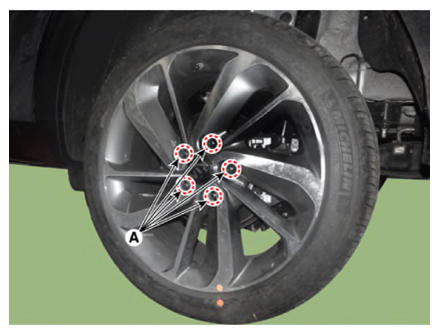

Remove the rear wheel and tire after loosening the nuts (A).
Tightening torque:

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

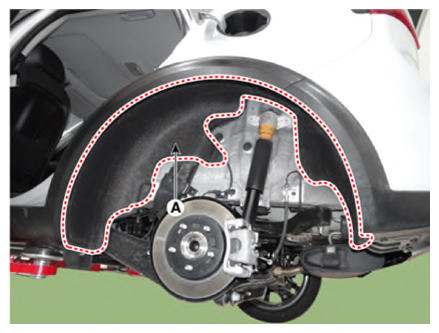

Remove the rear wheel guard (A). [LH]

Courtesy of KIA MOTORS AMERICA, INC.

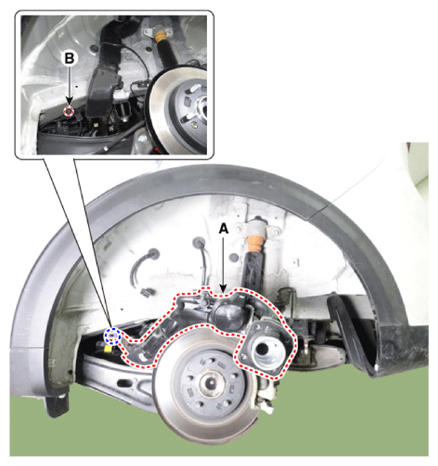

Separate the filler-neck (A) by loosening the mounting bolt (B).

Courtesy of KIA MOTORS AMERICA, INC.

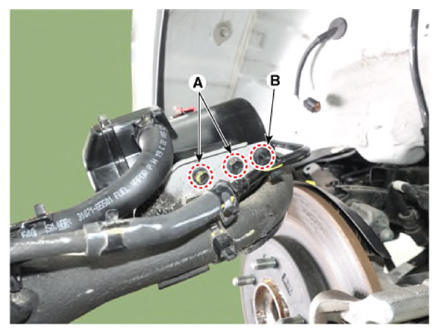

Remove the fuel tank air filter mounting bolts (A) and fastener (B).
Tightening torque:

3.9 - 7.8 N.m (0.4 - 0.8 kgf.m, 2.8 - 5.7 lb.ft, 34.7 - 69.4 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.

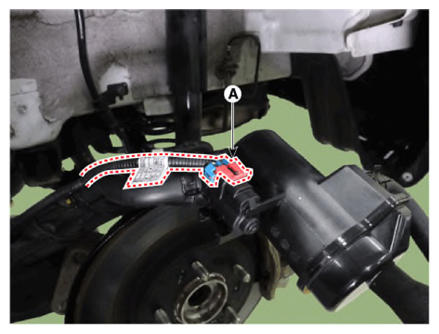

Disconnect the canister close valve connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

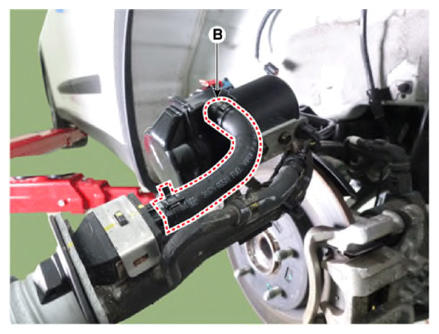

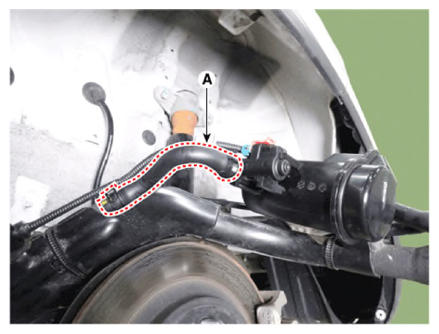

Separate the ventilation hoses (A, B).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

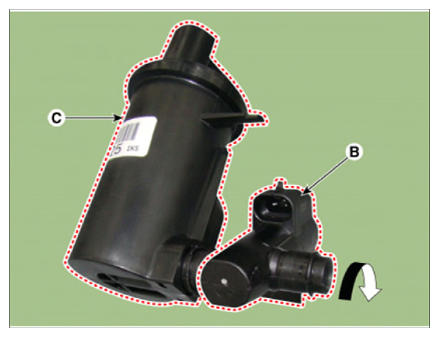

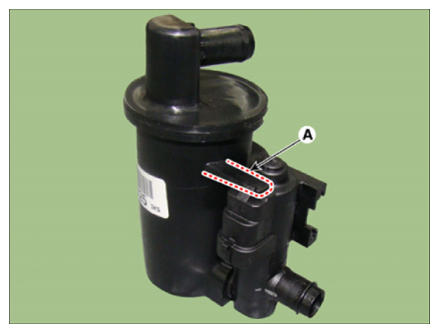

Remove the CCV (B) from the fuel tank air filter (C) by rotating it in the direction of the arrow after releasing the lever (A).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
