Repair Procedures: Removal
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

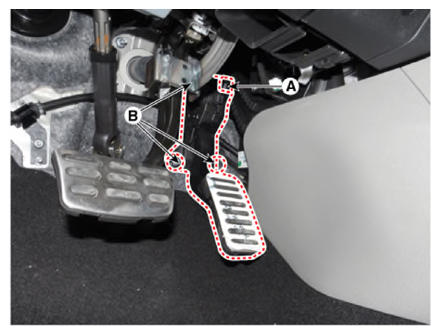

- Disconnect the accelerator position sensor connector (A).
- Remove the accelerator position sensor after loosening the mounting nuts (B).
Accelerator pedal sensor mounting nut:
12.7 - 15.7 N.m (1.3 - 1.6 kgf.m, 9.4 - 10.6 lb.ft)
