Repair Procedures: Installation
NOTE:
- Install the component to the specified torque.
- Note that internal damage may occur when the component is dropped. If the component has been dropped, inspect before installing.
- Apply engine oil to the valve O-ring.
- To prevent impurities from entering intake OCV & center bolt, wear rubber gloves.

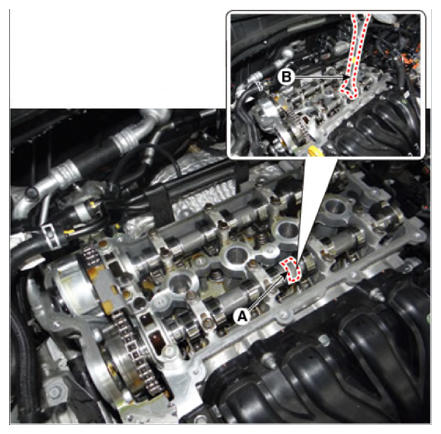

- When installing the intake OCV & center bolt, place a wrench (B) at position (A) to prevent the camshaft from rotating.
- Install in the reverse order of removal.
