CVVT Oil Control Valve (Exhaust)
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")

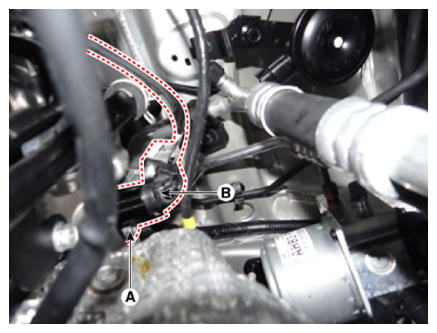

- OCV connector (A).
- Remove the mounting bolt, and then remove oil control valve from the engine.
CVVT oil control valve mounting bolt:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
