Bank 1/Exhaust

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

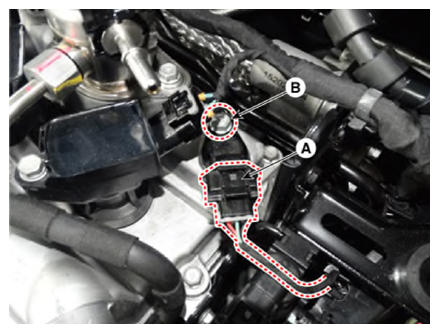

  2. Disconnect the camshaft position sensor connector (A).
  3. Remove the camshaft position sensor after loosening the mounting bolt (B).

    Camshaft position sensor mounting bolt:

    7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.7 - 8.7 lb.ft)

    G13348769Courtesy of KIA MOTORS AMERICA, INC.
