Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

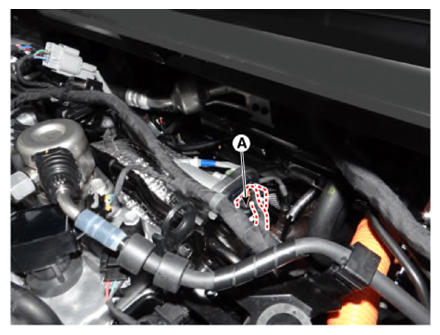

  3. Disconnect the EEGR valve connector (A).
    G13348839Courtesy of KIA MOTORS AMERICA, INC.

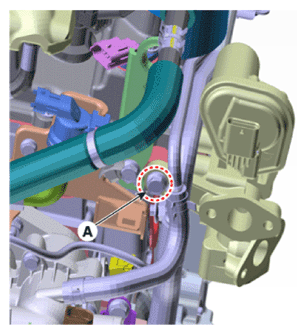

  4. EGR cooler pipe.

    (Refer to Engine Mechanical System - "EGR COOLER ")

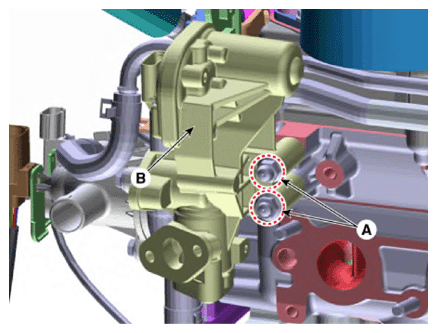

  5. Remove the EEGR valve (B) after loosening the mounting bolts and nuts (A).
G13348840Courtesy of KIA MOTORS AMERICA, INC.
G13348841Courtesy of KIA MOTORS AMERICA, INC.

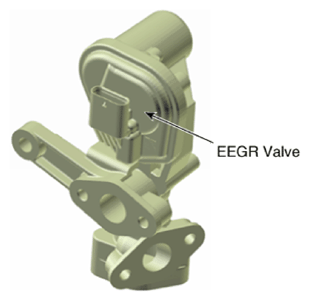

G13348842Courtesy of KIA MOTORS AMERICA, INC.
