ECM Terminal Input/Output Signal Connector [A]

Pin No. Description Condition Type Level
1 Injector (Cylinder #3) [Low] control Relay OFF DC Voltage 71V
Relay ON Max. 1.0V
2 Injector (Cylinder #4) [High] control Relay OFF DC Voltage 71V
Relay ON Max. 1.0V
3 Injector (Cylinder #4) [Low] control Relay OFF DC Voltage 71V
Relay ON Max. 1.0V
4 Engine speed signal output Idle Pulse High: Battery Voltage
Low: Max. 0.6V
5 EGR Valve (Motor-)
6 Sensor power (+5V) IG OFF DC Voltage Max. 0.5V
IG ON 4.9 - 5.1V
7 Sensor power (+5V) IG OFF DC Voltage Max. 50mV
IG ON 4.9 - 5.1V
8 Knock Sensor (KS) signal input Knocking Variable Frequency -0.3-0.3V
Normal 0V
9 Camshaft Position Sensor (CM PS) [Bank 1/Exhaust] signal input Engine Run Pulse High: 4.5 - 5.5V
Low:-0.3-0.5V
Frequency: 7Hz (Idle), 25Hz (3, 000rpm)
10 -
11 Brake switch [Test] signal input Brake OFF DC Voltage Battery Voltage (B+)
Brake ON Max. 50mV
12 Brake switch [Lamp] signal input Brake OFF DC Voltage Max.50mV
Brake ON Battery Voltage (B+)
13 -
14 -
15 -
16 Injector (Cylinder #3) [High] control Relay ON/OFF DC Voltage 71V
17 Injector (Cylinder #1) [High] control Relay ON/OFF DC Voltage 71V
18 Injector (Cylinder #1) [Low] control Relay OFF DC Voltage 71V
Relay ON Max. 1.0V
19 -
20 EGR Valve (Motor +)
21 Sensor shield Idle DC Voltage Max. 50mV
22 Sensor ground (-) Idle DC Voltage Max. 50mV
23 -
24 Sensor ground (-) Idle DC Voltage Max. 50mV
25 -
26 -
27 -
28 -
30 -
31 Injector (Cylinder #2) [High] control Relay ON/OFF DC Voltage 71V
32 -
33 ETC Motor [-] control
34 Sensor ground (-) Idle DC Voltage Max. 50mV
35 Throttle Position Sensor (TPS) 1 signal input C.T Analog 0.3 - 0.9V
W.O.T 1.5 - 3.0V
36 Sensor ground (-) Idle DC Voltage Max. 50mV
37 Rail Pressure Sensor (RPS) signal input Idle Analog -0.3 - 5.2V
38 -
39 Camshaft Position Sensor (CMPS) [Bank 1/Intake] signal input Engine Run Pulse High: 4.5 - 5.5V
Low: -0.3 - 0.5V
Frequency: 7Hz (Idle), 25Hz (3, 000rpm)
40 -
41 -
42 -
43 VS-/IP- (Common Ground for VS, IP) Idle Analog Reference for V_IP, V_N
44 Rc (Compensative Resistance) Idle Analog |Rc-Rc/Rp|<±0.1V
45 Sensor ground Idle DC Voltage Max. 50mV
46 Injector (Cylinder #2) [Low] control Relay OFF DC Voltage 71V
Relay ON Max. 1.0V
47 -
48 ETC Motor [+] control Engine Run Pulse High: Battery Voltage (B+) Low:
Max.1.0V
49 -
50 Throttle Position Sensor (TPS) 2 signal input C.T Analog 4.2 - 5.0V
W.O.T 3.3 - 3.8V
51 Sensor power (+5V) IG OFF DC Voltage Max. 50mV
IG ON 4.9 - 5.1V
52 Electric load signal input Lamp OFF DC Voltage Battery Voltage (B+)
Lamp ON Max. 50mV
53 Sensor ground Idle DC Voltage Max. 50mV
54 Sensor ground Idle DC Voltage Max. 50mV
55 EGR Valve (Feedback signal)
56 -
57 -
58 VS+ (NERNST cell voltage) Idle Analog Normal: 450±50mV
Rich: Max. Normal+150mV
Lean: Min. Normal-150mV
59 Rc/Rp (Pumping cell voltage) Idle Analog Normal: 450±50mV
Rich: Max. Normal+150mV
Lean: Min. Normal-150mV
60 Heated Oxygen Sensor [Bank 1/Sensor 2] signal input Idle DC Voltage Rich: 0.6-1.0V
Lean: Max. 0.4V

Connector [K]

PIN NUMBER DESCRIPTION

Pin No Description Condition Type Level
1 ECM Ground (-) Idle DC Voltage -0.3 - 0.5V
2 Battery power (B+) IG OFF DC Voltage Max. 1.0V
IG ON Battery Voltage (B+)
3 ECM Ground (-) Idle DC Voltage -0.3 - 0.5V
4 Battery power (B+) IG OFF DC Voltage Max. 1.0V
IG ON Battery Voltage (B+)
5 ECM Ground (-) Idle DC Voltage -0.3 - 0.5V
6 Battery power (B+) IG OFF DC Voltage Max. 1.0V
IG ON Battery Voltage (B+)
7 Fuel Pressure Control Valve (FPCV)[High] control Engine Run PWM
G13348719Courtesy of KIA MOTORS AMERICA, INC.
8
9 -
10 Engine Coolant Sensor (ECTS) signal input [EGR cooler tube] Idle Analog 0.5 - 4.5V (Idle: 1.02V)
11 Sensor ground Idle DC Voltage Max. 50mV
12 Vehicle signal input
13 -
14 -
15 Accelerator Position Sensor (APS) 2 signal input C.T Analog Max. 1.0V
W.O.T 1.5 - 3.0V
16 Sensor power (+5V) IG OFF DC Voltage Max. 50mV
IG ON 4.9 - 5.1V
17 Sensor power (+5V) IG OFF DC Voltage Max. 50mV
IG ON 4.9 - 5.1V
18 Sensor power (+5V) IG OFF DC Voltage Max. 50mV
IG ON 4.9 - 5.1V
19 Accelerator Position Sensor (APS) 1 signal input C.T Analog Max. 1.0V
W.O.T Min. 4.0V
20 Sensor power (+5V) IG OFF DC Voltage Max. 50mV
IG ON 4.9 - 5.1V
21 -
22 -
23 -
24 Fuel pump relay control Relay OFF DC Voltage Battery Voltage (B+)
Relay ON -0.3 - 1.2V
25 -
26 -
27 -
28 -

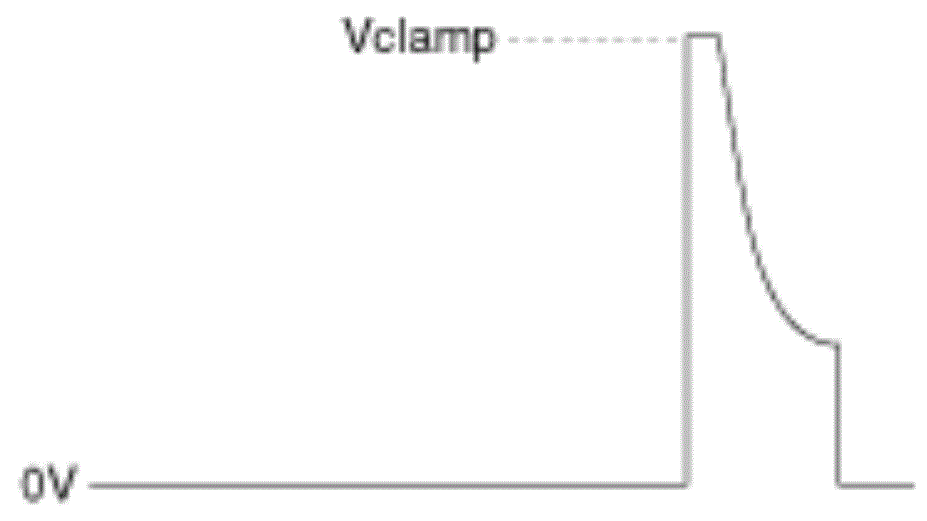

29 Fuel Pressure Control Valve [Low] control I Engine Run PWM
G13348720Courtesy of KIA MOTORS AMERICA, INC.
30 A/C Pressure Transducer (APT) signal input A/CON Analog 0.348 - 4.63 V
31 -
32 Crankshaft Position Sensor (CKPS) signal input Engine Run Pulse High: 4.5 - 5.5V
Low: - 0.3 - 0.5V
Frequency: 850Hz (Idle), 3, 000Hz (3, 000rpm)
33 -
34 -
35 -
36 -
37 Sensor ground (-) Idle DC Voltage Max. 50mV
38 Manifold Absolute Pressure Sensor (MAPS) signal input Idle Analog 0.8-1.6V (Idle: 1.37V)
39 Intake Temperature Sensor (IATS) signal input Idle Analog 0-5.0V (Idle: 2.55V)
40 Sensor ground (-) Idle DC Voltage Max. 50mV
41 Sensor ground (-) Idle DC Voltage Max. 50mV
42 -
43 -
44 Mass Air Flow Sensor (MAFS) signal input
45 Sensor ground Idle DC Voltage Max. 50mV
46 Main Relay control Relay OFF DC Voltage Battery Voltage (B+)
Relay ON -0.3 - 1.2V
47 Variable Force Solenoid (VFS) [Bank 1/Intake] control
48 -
49 -
50 -
51 Battery power (B+) IG OFF DC Voltage Max. 1.0V
IG ON Battery Voltage (B+)
52 -
53 -
54 Sensor ground (-) Idle DC Voltage Max. 50mV
55 P-CAN [High] Recessive Pulse 2.0 - 3.0V
Dominant 2.75 - 4.5V
56 H-CAN [High] Recessive Pulse 2.0 - 3.0V
Dominant 2.75 - 4.5V
57 -
58 Immobilizer communication line
59 -
60 Engine Coolant Sensor (ECTS) signal input [Water Temperature Control Assembly]
61 Sensor ground Idle DC Voltage Max. 50mV
62
63 -
64 Ignition Coil (Cylinder #2) control Engine Run Pulse Vpeak = 360 - 440V 125
65 Ignition Coil (Cylinder #3) control Engine Run Pulse Vpeak = 360 - 440V 125
66 -
67 -
68 Cooling fan relay control
69 -
70 CVVT Oil Control Valve (OCV) [Bank 1/Exhaust] control Idle Pulse High: Battery Voltage (B+)
Low: -0.3 - 1.0V
Frequency: 300Hz
71 -
72 -
73 Battery power (B+) IG OFF DC Voltage Max. 1.0V
IG ON Battery Voltage (B+)
74 -
75 Sensor ground (-) Idle DC Voltage Max. 50mV
76 Local Interconnect Network (LIN) Serial Bus Line
77 P-CAN [Low] Recessive Pulse 2.0 - 3.0V
Dominant 2.75 - 4.5V
78 H-CAN [Low] Recessive Pulse 2.0 - 3.0V
Dominant 2.75 - 4.5V
79 -
80 -
81 -
82 -
83
84 Sensor ground (-) Idle DC Voltage Max. 50mV
85 -
86 Ignition Coil (Cylinder #4) control Engine Run Pulse Vpeak = 360 - 440V 125
87 Ignition Coil (Cylinder #1) control Engine Run Pulse Vpeak = 360 - 440V 125
88 -
89 -
90 -
91 Heated Oxygen Sensor (HO2S) [Bank 1/Sensor1] Heater control Engine Run Pulse High: Battery Voltage (B+)
Low: -0.3 - 1.0V
Frequency: 8 - 10Hz
Duty: 0 - 100%
92 Heated Oxygen Sensor (HO2S) [Bank 1/Sensor2] Heater control Engine Run Pulse High: Battery Voltage (B+)
Low: -0.3 - 1.0V
Frequency: 8 - 10Hz
Duty: 0 - 100%
93 Purge Control Solenoid Valve (PCSV) control Inactive Active Pulse High: Battery Voltage (B+)
Low: Max. 1.0V
Vpeak: 42.0-60.0V
Frequency: 20Hz
94 -
