Bank 1/Sensor 1

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Disconnect the connector (A), and then remove the sensor (B).

    Heated oxygen sensor:

    39.2 - 49.1 N.m (4.0 - 5.0 kgf.m, 28.9 - 36.2 lb.ft)

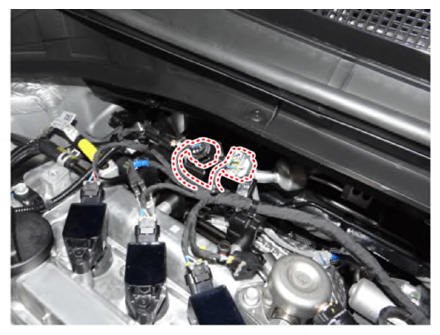

    G13348777Courtesy of KIA MOTORS AMERICA, INC.

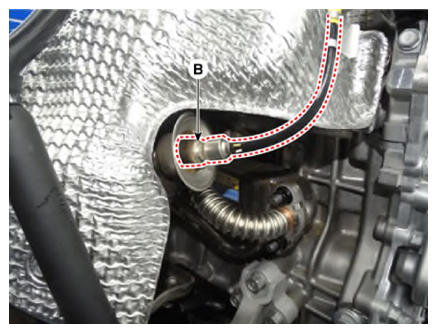

    G13348778Courtesy of KIA MOTORS AMERICA, INC.
