Repair Procedures: Removal
WARNING:
In case of removing the high pressure fuel pump, high pressure fuel pipe, delivery pipe, and injector, there may be injury caused by leakage of the high pressure fuel. So don't do any repair work right after engine stops.
- Release the residual pressure in fuel line.
(Refer to the Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the intake manifold.
(Refer to Engine Mechanical System - "INTAKE MANIFOLD ")
- Remove the delivery pipe & injector assembly.
(Refer to Fuel Delivery System - "DELIVERY PIPE ")

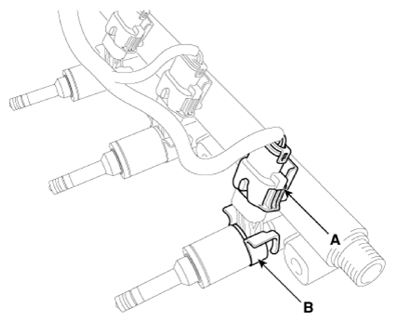

- Remove the connector (A) and the fixing clip (B), and then separate the injector from the delivery pipe.
