Repair Procedures: Removal

Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ").
Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
Remove the intake manifold.
(Refer to Engine Mechanical System - "INTAKE MANIFOLD ")

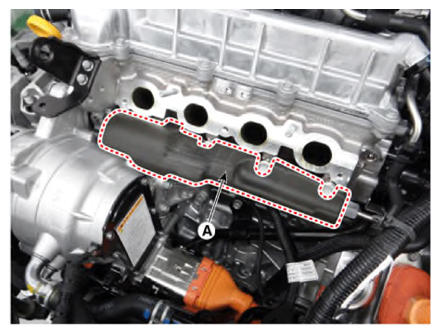

Remove the injector foam (A).

Courtesy of KIA MOTORS AMERICA, INC.

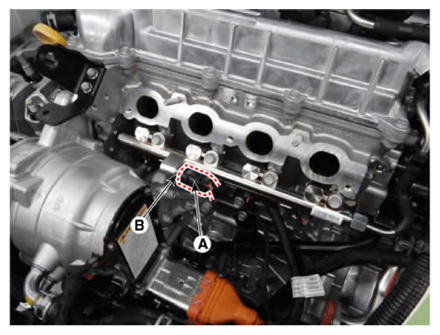

Disconnect the rail pressure sensor connector (A), and then remove the sensor (B) from the delivery pipe.
Rail Pressure Sensor:

30.0 - 34.3 N.m (3.0 - 3.5 kgf.m, 22.1 - 25.3 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
