Antenna Status Check

  1. Connect the cable of KDS/GDS to the data link connector in driver side crash pad lower panel.
  2. Select the "Antenna Status Check".

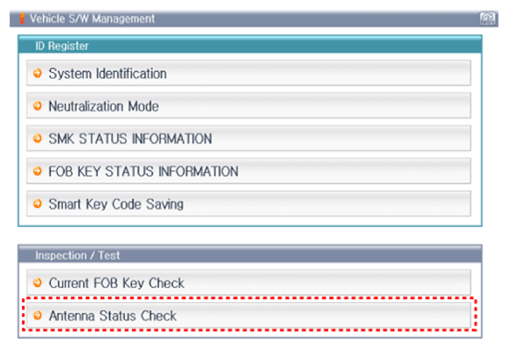

    G13706532Courtesy of KIA MOTORS AMERICA, INC.
  3. After IG ON, select the "Antenna Status Check".

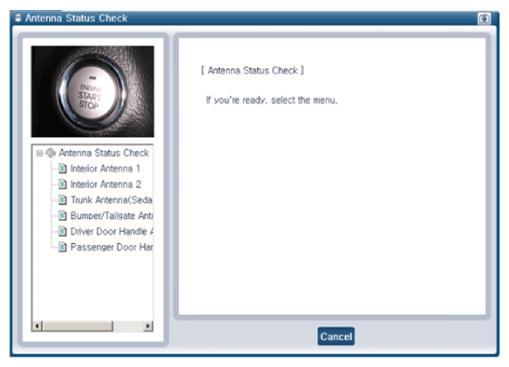

    G13706533Courtesy of KIA MOTORS AMERICA, INC.
  4. Set the smart key near the related antenna and operate it with a KDS/GDS.
    G13706534Courtesy of KIA MOTORS AMERICA, INC.

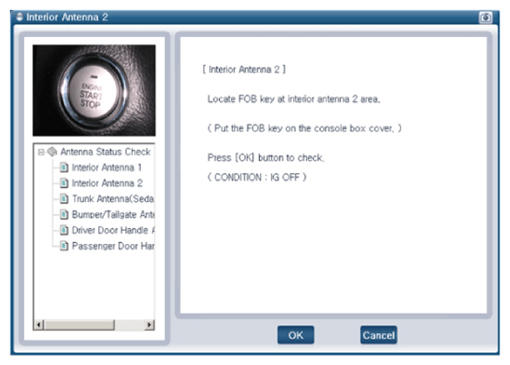

    G13706535Courtesy of KIA MOTORS AMERICA, INC.
  5. If the smart key runs normal, the related antenna, smart key(transmission, reception) and exterior receiver are normal.
  6. Antenna status
    • Interior Antenna 1
    • Interior Antenna 2
    • Tailgate Antenna
    • Bumper Antenna
    • Driver Door Antenna
    • Assist Door Antenna
