Door Outside Handle

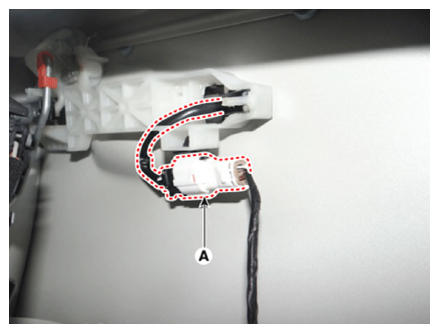

  1. Disconnect the front door outside handle connector (A).
    G13706525Courtesy of KIA MOTORS AMERICA, INC.

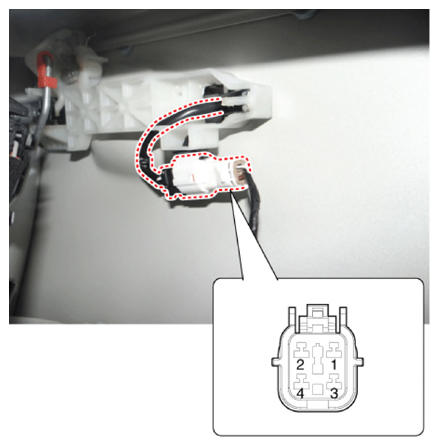

  2. Check for continuity between terminals No 2 and No 4.
    G13706526Courtesy of KIA MOTORS AMERICA, INC.
    No. Description
    1 Door antenna 1
    2 Door lock/unlock button 1
    3 Door antenna 2
    4 Door lock/unlock button 2
