Tailgate Open Switch

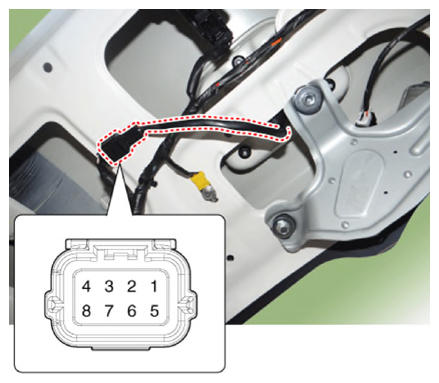

  1. Check for continuity between the tailgate open switch terminals.
    G13706527Courtesy of KIA MOTORS AMERICA, INC.

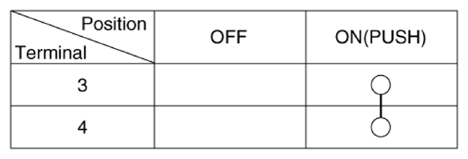

  2. If continuity is not specified, inspect the switch
    G13706528Courtesy of KIA MOTORS AMERICA, INC.
