Repair Procedures: Removal: Buzzer

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front bumper assembly.

    (Refer to Body - "REPLACEMENT ")

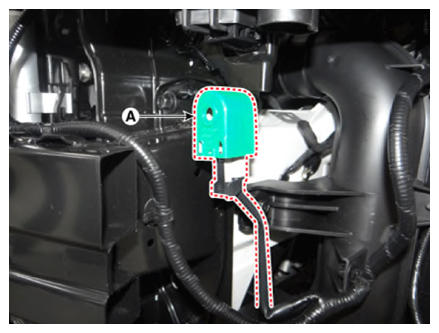

  3. Remove the buzzer (A) after disconnecting the connector.
    G13706521Courtesy of KIA MOTORS AMERICA, INC.
